Duplo 490 PRO Hydraulic Cutter
Duplo 490 PRO Hydraulic Paper Cutter

Overview:
  • This is a hydraulic guillotine paper cutter
  • Maximum cutting width of 19.29"
  • Maximum stack height of 3.14"
Key Applications:
  • Direct mailers
  • Flyers
  • Postcards
  • Brochures
  • Perfect-bound books

Call 866-584-7812 to speak with one of our product specialists!
Please call for a free demo and pricing info.


Availability: Usually Ships in 24 to 48 Hours
Product Code: DUP-490-PRO
Please call 866-584-7812

Description

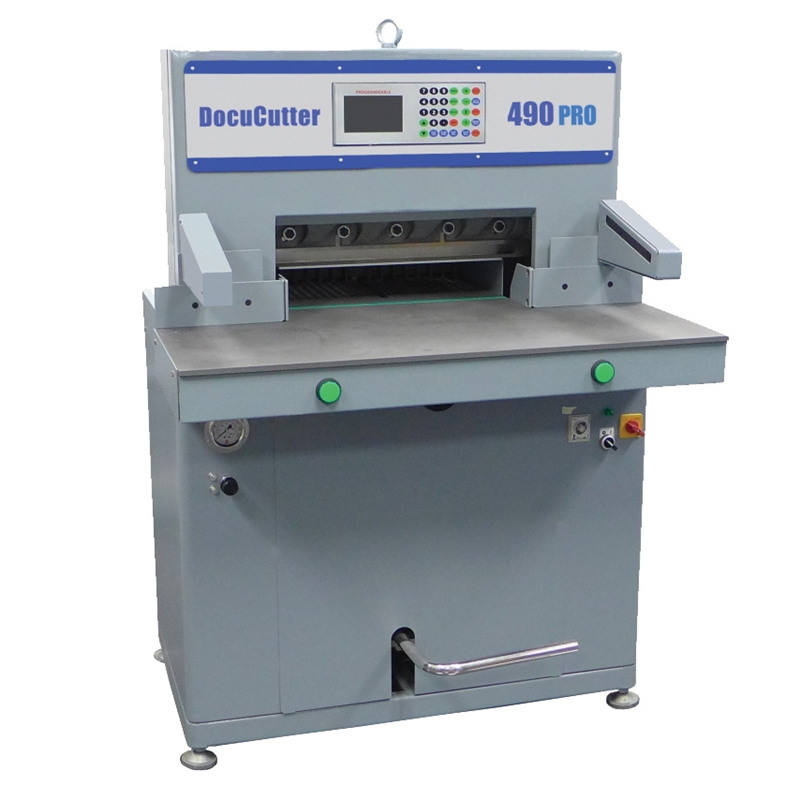

Duplo 490 PRO Hydraulic Paper Cutter


The 490 PRO Hydraulic Cutter offers high performance and precision cutting of document stacks printed on a wide array of paper stocks and weights. Hydraulic-powered and rugged in construction, the 490 PRO is easy to use and features a user-friendly touchscreen control panel which guides operators throughout the job setup as well as the cutting positions. Up to 98 jobs can be saved in memory and up to 49 cuts can be programmed per job. Cutting sequences are conveniently stored and recalled at the touch of a button.

To pinpoint accuracy and avoid expensive reprints, the 490 PRO beams a cutting line where the cut will be executed. The foot pedal controls the hydraulic clamp which eliminates any excess air between the sheets and allows users to double check the cutting line. In addition, the hydraulic pressure is adjustable to minimize the risk of marking when cutting sensitive stock or perfect bound books.

The special anti-friction surface, aluminum alloy cutting table requires no polish or waxing and will not rust over the life of the cutter. Operator safety is always a priority so the 490 PRO comes equipped with light sensors that disable the cutting knife when an object comes too close. Ideal for precision cutting, the 490 PRO Hydraulic Cutter offers an efficient solution for any on-demand environment.

Features include:

  • Accommodates 19.29" cutting width
  • Hydraulic-powered, rugged construction
  • Color LCD touchscreen control panel
  • Memory for up to 98 jobs and 49 cuts per job
  • Full light beam curtain and dual palm cut buttons for operator safety

Specifications:

Maximum Cut Width: 19.29” (490mm)
Maximum Cut Height: 3.14” (80mm)
Power Requirements: 220V single phase 50/60Hz AC 2HP
Weight: 880 lbs. (400 kg)
Dimensions (LxWxH): 40.16” x 45.28” x 53.55”
See product brochure for complete specifications.

Click the PDF image to view the Duplo 490 PRO Hydraulic Paper Cutter PDF brochure, or right-click to download.Duplo 490 PRO Hydraulic Paper Cutter PDF Brochure


Please take a look at the video below to see what the Duplo 490 PRO Hydraulic Paper Cutter can do for you!
