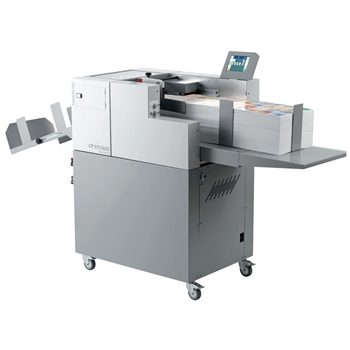

Duplo CP375 DUO

The CP375 DUO Touchline offers an efficient creasing and perforating solution ideal for mid to high volume runs. Equipped with two creasing tools (male/ female) and a cross perforating tool, the CP375 DUO performs up to 20 creases and 20 perforations simultaneously in a single run. An optional strike perforating tool can be added for increased versatility.

The innovative creasing and perforating system features an interchangeable toolbar system with two slots where users can easily mix and match the tools to create a multitude of applications. The creasing and perforating tools may be used in either slot which are electronically detected and the relevant pressure is automatically adjusted. The male and female creasing tools can be combined to perform up and down creasing, perfect for finishing covers for perfect bound books. The cross perforating tool and the optional strike perforating tool can also be combined to perform cross perforations.

Features include:

Up to 6,000 sheets per hour
Male and female creasing tools
Cross perforating tool
Side guide system
Double-feed detection
Optional strike perforating tool

Specifications:

Feeder System: Suction Feeder
Feeder Capacity: 7.09”
Paper Size Minimum: 4.14” x 5.82”
Paper Size Maximum: 14.76” x 41.34” With optional extension table
Paper Stock Perforating: 80-300gsm or max 0.3mm
Paper Stock Creasing: 80-400gsm or max 0.4mm
Control Panel: Touchscreen

Double Sheet Detection: Ultrasonic, Standard

Click the PDF image to the right to view the Duplo CP375 Duo brochure, or right-click to download.
